Home » Products » Financial Inclusion » BALAJI Smart Series

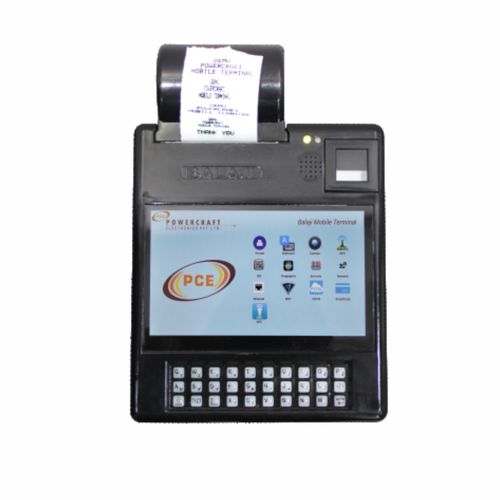

BALAJI Smart Series

BALAJI Smart Series
BALAJI Smart Series
Product Code : 30
Brand Name : Financial Inclusion
Product Description

Financial Inclusion

M/S Powercraft Electronics Pvt Ltd has introduced BALAJI Smart 1 Series for financial inclusion application. Financial Inclusion program launched by all the nationalized banks under guidelines sent by RBI for financial inclusion. Financial inclusion is targeting to reach out unbanked people. The micro ATM device as it is known used in financial inclusion program is biometric enabled device. This devices used in financial inclusion are also GPS enabled, voice annunciation GPRS are main feature of it. Financial inclusion program is been implemented and once successful this by this financial inclusion program all the payment of NREGA,social security payments ( SSP),PDS subsidies can routed to accounts through financial inclusion.



Feature

SMART 1

SMART 2

Processor                           Arm 9  32-bit core CPU @ 400 MHz

·

·

Memory                             RAM                   : 128 MB

·

·

                                           Flash                   :  256/512 MB

·

·

                                           Serial Flash         : 4/8 Mb

·

·

Operating System              Linux operating system ( Ver 2.6 xx)

·

·

Keypad                               Number of keys

45 ( Qwerty)

30

                                           Navigation keys

4

4

                                           Backlit

·

·

Display                               3.5inch ,64k color/320 x 240 QVGA backlit/ TFT touch screen

·

Graphics LCD (128 x 64)

(8rowsx20 col)

Printer                                 2” Thermal printer 32 column

·

·

                                            Graphics/Multilingual support /logo printing

·

·

                                            3” Thermal printer 48 column

·

·

                                            Graphics/Multilingual support /logo printing

·

·

Contact less reader              ISO 1443A/B MIFARE

·



Contact smart card              Dual contact smart cards

·



SAM Slots                           2 + 1 Sim

·



Biometrics                           Finger print scanner, Capacitive

                                            Sensor, ISO 19794 & ANSI 378

·



Camera                                In built, Auto focus,VGA

·



Interface / Connector          1x RS -232 ( Serial / Console )

·

·

                                            1x USB OTG (mini Type AB)

·

·

                                            1x USB host ( Type A )

·



                                            Ethernet 10/100 Mbps

·



Communication                   GSM / GPRS ,Dual/Quad Band,

Modules                               Internal antennae

·

·

Navigation                           Integrated GPS,with Internal

                                            Antennae , NEMA std

·



Power Adaptor                    Switched mode,AC input 100-300v,

                                            50/60 Hz DC output 9.5 V,1A with

                                            Over voltage,short circuit protection

·

·

Battery                                Li-Ion 7.4V with short Circuit protection

3300 mAh

2200 mAh

Enclosure                            ABS + PC

·

·

Operating Temperature       5° C  to 55°C

·



Humidity                              95% RH non condensing

·

·

Immunity                             IEC 61000-4-2

·

·

                                             IEC 61000 -4-3

·

·

                                             IEC 61000-4-5

·

·

                                             IEC 61000-4-6

·

·

                                             IEC 61000-4-8

·

·

                                             IEC 61000-4-9

·

·

Audio                                   Integrated speaker for multilingual

                                             Annunciation, buzzer

·



Visual                                  2 BI colour LED’s, Error /GSM signal

                                             Level ,Batt low / charging indicators

·

Single LED

Dimensions                          (L x W x H) in mm

223x13x35

260x100x10

Weight

500 gm

450 gm

Accessories                          Carry Bag , holster with grip

·

   (+ stylus)

·
